▲ frequency response: 10 ~ 800Hz (-3db)
▲ Sensitivity: 20.0mv / mm s-1, ± 5%
(Measured at 80 Hz at a speed of 10 mm / s)
▲ amplitude linearity: <3%
▲ lateral sensitivity ratio: <5%
▲ maximum measurable displacement: 1mm (single peak)
▲ working direction: sensor mounting surface below 0 °
MLV-8 0 ° ± 100 ° (Universal)
▲ output resistance: ≤600Ω
Insulation resistance:> 2MΩ
▲ output wiring: floating output. When the sensor base by an impact,
1 # core output is (+), 2 # output is (-).

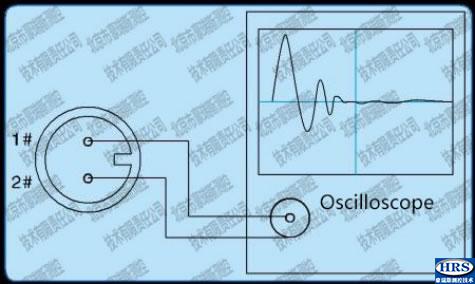

Access oscilloscope, 1 # then the core, 2 # ground, the waveform as shown:
▲ environmental conditions: dust, moisture (95% non-condensing)
▲ Weight: about 200g
▲ installation method:
1) Fix the center hole of the base with an M8 stud bolt
2) with a fast unloading magnetic base (for on-site testing)
▲ Order Model:
MLV-8
MLV-8T (high temperature type)
▲ Operating temperature range:
Standard type: -30 ~ 120 ℃
High temperature type: -30 ~ 260 ℃ (Order)
▲ appearance size: Φ35 × 70mm
∷
